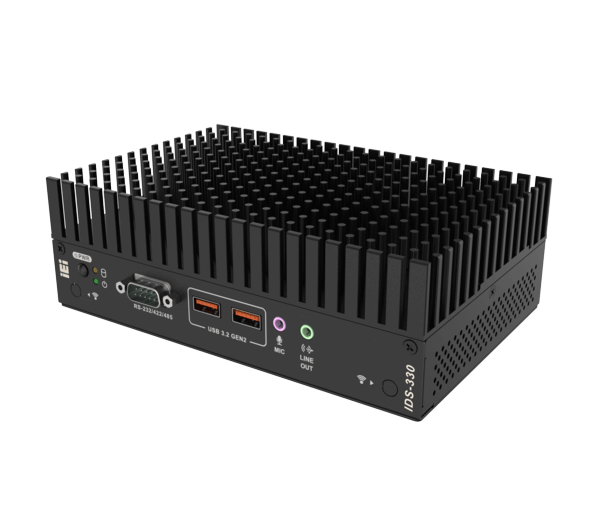

> 產品 > 強固型系統 > IDS-330-ADL-P
| » 支持的CPU: |
|
Alder Lake
12th Gen Intel® Core™ Solution (up to 10 cores)
|
|
Intel® Core™
i5-1235U (up to 4.4GHz, 10-core, 15W TDP)
|
|
Intel® Core™
i7-1255U (up to 4.7GHz, 10-core, 15W TDP)
|
|
» 支持4個4K
HDMI™顯示
|
|
» 2個2.5GbE網卡
|
|
» M.2 B Key,
M.2 M Key & M.2 E Key擴展
|
|
» 4個USB3.2
GEN2 x1
|
|
» 符合 CE/FCC 標準
|
| SBC Form Factor | ● Supported
CPUs: Alder Lake 12th Gen Intel® Core™ Solution (up to 10 cores) Intel® Core™ i5-1235U (up to 4.4GHz, 10-core, 15W TDP) Intel® Core™ i7-1255U (up to 4.7GHz, 10-core, 15W TDP) ● 芯片組: SoC ● 系統內存: 板載 LPDDR4X 8GB (****支持到16GB) ● 電源: 直流插孔: 12 V直流 功耗: 12V@4.25A (Intel i7-1255U 帶 8GB DDR4 內存) |
| I/O Ports | ●
USB: 4 x USB 3.2 Gen 2 ● 網絡: 2x 2.5 GbE by Intel® I225V (colay I225LM) ● 顯示: 4 x HDMI™ 1.4b with CEC (up to 3096 x 2160@30Hz) ● TPM: 支持 Intel PTT ● 看門狗定時器: 可編程 1 ~ 255 秒/分鐘 |
| Expansion Slots | ●
M.2: 1 x M.2 E Key 2230 for WIFI & BT (選配) 1 x M.2 M Key (PCIe x4) 2280 1 x M.2 B key 3042/52/80 帶 SIM 卡槽 (PCIex1/USB2.0/SATA) |
| Cooling method / System Fan | 無風扇 4 針外部系統風扇連接器 |
| Drive Bays | N/A |
| Buttons | 1
x 電源開關 1 x 復位開關 |
| Indicators | 1
x 電源燈 (綠色) 1 x 硬盤燈 (黃色) |
| Construction | 鋁合金 |
| Color | 黑色 |
| Dimensions | 176 x 115.6 x 55.2 |
| Weight | 0.94 / 1.7 kg |
| 工作溫度 | -10°C ~ 40°C有氣流 |
| 相對濕度 | 10% ~ 95% 無冷凝 |
| Operating Vibration | 10-500 Hz,1.04 Grms, random, 1 hr/axis |
| Operating Shock | Half-sine wave shock 5G, 11ms, 100 shocks per axis |
| 安規&電磁 | 符合CE/FCC認證 |
| OS Support | Microsoft Windows 10 / Windows 11, Linux |
| IDS-330-ADL-P-i7C-R10 | Fanless embedded system with Intel®Alder Lake-P i7, on-board 8GB LPDDR4x memory, four HDMI™ display, 12V DC, two 2.5GbE and RoHS |
| IDS-330-ADL-P-i5C-R10 | Fanless embedded system with Intel®Alder Lake-P i5, on-board 8GB LPDDR4x memory, four HDMI™ display, 12V DC, two 2.5GbE and RoHS |
