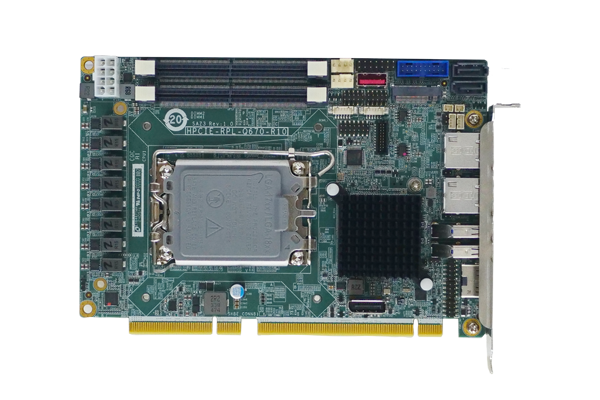

> 產品 > 半長CPU卡 > HPCIE-RPL-Q670| » Half-size PICMG 1.3 CPU Card 支持 LGA1700 Intel® 12th/13th/14th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q670E |
|
» 支持 262-pin
5200 MHz Dual-Channel DDR5 So-DIMMs
|
|
» 獨立雙顯：支持DP
and HDMI™
|
|
» 支持 Intel®
I226-LM and Intel® I226V 2.5GbE controller
|
|
» 支持 M.2 M key
擴展
|
產品規格
| CPU | LGA1700 socket 支持 12th/13th/14th generation Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (高達 65W) |
| 芯片組 | Intel® Q670E/Q670 |
| 內存 | 兩個262-pin 5200 MHz Dual-Channel DDR5 So-DIMMs |
| 內存上限 | 96GB |
| 網絡 | 2 x LAN - LAN1: Intel® I226-LM 2.5GbE controller LAN2: Intel® I226-V 2.5GbE controller |
| 顯示輸出 | 1
x HDMI™: 4K@30Hz 1 x Display Port: 4K@60Hz, 180° |
| 音頻 | HD Audio: 1 x iAUDIO, 支持 IEI AC-KIT-888S Audio Module (2 x 5 pin) |
| I/O接口 | 2
x 內部RS-232/422/485: 2x5 pin, P=2.00 (RS485 支持 AFC) 4 x 內部 USB 2.0: 2x4 pin, P=2.54 1 x DIO: 12-bit digital I/O (2x7 pin) 2 x 外部 USB 3.2 Gen2x1: 10Gb/s (Type-A) 1 x Internal USB 3.2 Gen2x1: Type A 180° 2 x Internal USB 3.2 Gen1x2: 2 X 10 pin P=2.00 (5Gb/s) 1 x I²C: 1x4 pin |
| 存儲 | 2
x SATA: 6Gb/s (支持RAID 0/1) 1 x M.2(NGFF): M Key (2242, PCIe Gen3 x4) 支持 NVMe |
| 擴展 | 描述:1 x PCIe Gen3 x16 & 4 x PCIe Gen3 x1 信號通過金手指 |
| 電源供電 | ATX/AT
power supply Support AT/ATX mode ErP/EuP Compliant |
| 電源功耗 | 3.3V@0.05A,
5V@0.93A, 12V@11.33A, 5VSB@0.37A (Intel i9-14900 2GHz CPU with Apacer DDR5 5600MT/s SODIMM 32GB memory, EuP mode enabled) |
| 操作溫度 | -10~60℃ |
| 存儲溫度 | -30°C ~ 70°C |
| Humidity | 5% ~95%, 無冷凝 |
| 尺寸 (LxWxH) (mm) | 168 mm x 126 mm |
| 凈重 | GW:1000g / NW:420g |
| M.2 | 1 x M.2 M Key (2242, PCIe Gen3 x4 ) 支持NVMe |
| 散熱方案/系統風扇 | 1
x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| TPM | 支持 TPM 2.0 (TPM-IN03 module) & Intel PTT |
| 尺寸類型 | Half Size Single Board Computer |
訂購信息
| HPCIE-RPL-Q670-R10 | Half-size PICMG 1.3 CPU Card supports LGA1700 Intel® 12th/13th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q670E, DDR5, HDMI,DP,Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, iAUDIO and RoHS |
