 產品特征 | | | 1. 支持 LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® 或 Celeron® 處理器
2. 雙通道 DDR3 1333/1600 MHz 可支持 16GB
3. Intel® HD 圖形技術集成高性能圖形和媒體處理
4. 支持 legacy PCI 32-bit 33/66MHz
5. 支持 10個 COM 口, USB 3.0, SATA 6Gb/s 和 mSATA
6. TPM 模塊支持 TPM V1.2 硬件安全功能
7. 威強電一鍵恢復解決方案可快速創建 OS 備份和恢復
8. 通過 iRIS-2400 模塊支持 IPMI 2.0
9. 威強電免跳線功能 |
|
| |
| 產品規格 | | | | CPU | 支持 LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® 或 Celeron® 處理器 | | 芯片組 | Intel® H81 | | BIOS | UEFI BIOS | | 內存 | 2個 240-pin 1600/1333MHz 雙通道 DDR3 & DDR3L SDRAM 無緩沖 DIMM 可支持 16GB | | 以太網 | GbE1: Intel® AMT 9.0 支持 Intel® I217LM
GbE2: NCSI 支持 Intel® I210-AT PCIe 控制器 | | I/O接口 | 2 x RS-232 (rear IO)
8 x RS-232 (port 3~6, port 7~10)
1 x LPT
1 X RS-422/485 by s/w selection (colay COM10)
1 x PS/2 KB/MS
2 x SATA 6Gb/s
2 x USB 3.0 (rear IO)
2 x SATA 3Gb/s
10 x USB 2.0 (2 by rear IO, 8 by pin header) | | Super I/O | Fintek F81866 | | TPM | 1 x 20-pin (2x10) header | | SMBus | 1 x 4-pin wafer | | 音頻 | Realtek ALC662 HD 音頻編解碼器 | | 顯示接口 | VGA1 (up to 1920x1200 @ 60 Hz)
VGA2 (up to 1920x1200 @ 60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz) | | 擴展槽 | 1 x PCIe x16 插槽 (Gen 3)
1 x PCIe x1 插槽
2 x PCI 插槽 | | 看門狗定時器 | 軟件可編程支持 1~255 秒系統復位 | | 電源 | ATX 電源 | | 功耗 | 3.3V@0.64A, 5V@4.20A, 12V@0.14A, Vcore_12V@3.88A, 5VSB@0.20A (Intel® Core™ i7-4770K 3.90 GHz CPU with 8GB (2 x 4GB) 1333MHz DDR3 memory) | | 音頻處理 | 音頻輸入, 音頻輸出 (with 3.5W +3.5W audio ampliier), Mic | | 圖形 | Intel® HD Graphics Gen 7.5 支持 DX11.1 和 OpenCL 1.2, OpenGL 3.2 Full MPEG2, VC1, AVC Decode | | 工作溫度 | -20°C ~ 60°C | | 相對濕度 | 5% ~ 95%, 無冷凝 | | 尺寸 | 244mm x 244mm | | 重量 | 1200g / 凈重: 680g | | Front Panel | 1 x 前面板 (電源 LED, HDD LED, 揚聲器, 電源按鈕, 復位按鈕) | | I2C | 1 x 4-pin wafer | | Fan Connector | 1 x 4-pin CPU 風扇連接器
1 x 3-pin 系統風扇連接器 | | iRIS Remote Management Module | 1 x iRIS-2400 插槽 | | LAN LED | 2 x 2-pin headers for LAN1 Link LED, LAN2 Link LED |
|
|
| |

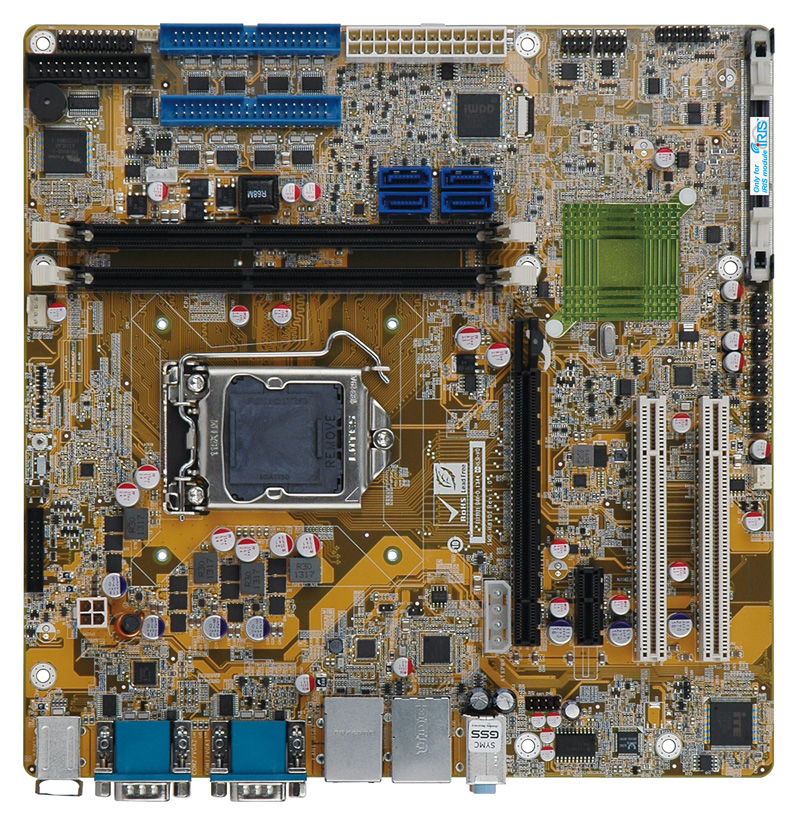

| 訂購信息 | | | | 產品名稱 | 描述 | | IMB-H810-i2-R11 | microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3/Pentium® and Celeron® CPU per Intel® H81, DDR3, VGA, Dual Intel® PCIe GbE, USB 2.0, PCI, COM, SATA 6Gb/s, LPT, HD Audio, iRIS-2400 and RoHS | | iRIS-2400-R10 | IPMI 2.0 adapter card with AST2400 BMC chip for DDR3 SO-DIMM socket interface | | 19800-000049-RS | LPT cable | | 19800-000051-RS | RS-232 cable, 230mm (P=2.54) | | 19800-000075-RS | PS/2 KB/MS Y-cable with bracket, 220mm | | 19800-003100-300-RS | Dual-port USB 2.0 cable with bracket | | 19800-010500-200-RS | USB 3.0 cable 457mm with bracket | | 32102-000100-200-RS | SATA power cable, MOLEX 5264-4P to SATA15P | | 32205-001203-200-RS | RS-232 cable, 40-pin to four DB-9 | | 32205-003800-300-RS | RS-422/485 cable, 200m | | CF-1156A-RS-R11 | High performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W | | CF-1156E-R11 | High performance LGA1155/LGA1156 cooler kit, 95W | | DP-DP-R10 | DisplayPort to DisplayPort converter board (for IEI iDP connector) | | DP-DVI-R10 | DisplayPort to DVI-D converter board (for IEI iDP connector) | | DP-HDMI-R10 | DisplayPort to HDMI converter board (for IEI iDP connector) | | DP-LVDS-R10 | DisplayPort to 24-bit dual-channel LVDS converter board (for IEI iDP connector) | | DP-VGA-R10 | DisplayPort to VGA converter board (for IEI iDP connector) | | TPM-IN01-R11 | 20-pin infineon TPM module, software management tool, firmware V3.17 |
|
|
| |
| 包裝清單 | | | | 1 * IMB-H810-i2 single board computer | 1 * I/O shielding | | 2 * SATA cable | 1 * QIG | | 1 * Utility CD | |
|
|
