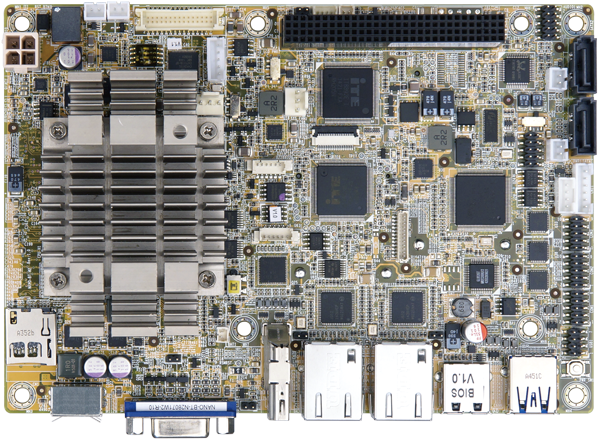

> 產品 > EPIC NANO系列主板 > NANO-BTW2
| » EPIC SBC supports 22nm Intel® Atom™ or Celeron® on-board SoC |
|
» Supports
dual independent display with LVDS, VGA and HDMI™
|
|
» 1.35V DDR3L
1333/1066 MHz SDRAM support up to 8 GB
|
|
» Support IPMI
2.0 with iRIS-1010 module
|
|
» IEI One Key
Recovery solution allows you to create rapid OS backup and recovery
|
| CPU | Intel® Atom™
E3827 on-board SoC (1.75GHz, dual-core, 1MB cache, TDP=8W) Intel® Atom™ E3826 on-board SoC (1.46GHz, dual-core, 1MB cache, TDP=7W) Intel® Atom™ E3815 on-board SoC (1.46GHz, single-core, 512KB cache, TDP=5W) |
| 內存 | One 204-pin 1333/1066 MHz single-channel unbuffered DDR3L SDRAM SO-DIMM |
| 內存上限 | 8
GB |
| 網絡 | 2 x LAN:LAN1: Intel® I210-IT PCIe controller with NCSI support LAN2: Intel® I210-IT PCIe controller |
| 顯示輸出 | 1
x VGA:up to 2560x1600@60Hz 1 x HDMI™:up to 1920x1080@60Hz 1 x LVDS:18/24-bit dual-channel (up to 1920x1200@60Hz) |
| 音頻 | 描述:Realtek
ALC662 HD Audio codec 1 x Front Audio:2x5 pin |
| I/O接口 | 3
x Internal RS-232:2x5 pin, p=2.0 1 x Internal RS-422/485:1 x4 pin, p=2.0 1 x External USB 2.0 1 x External USB 3.2 Gen1x1 3 x Internal USB 2.0:2x4 pin, p=2.0 1 x PS/2 |
| 存儲 | 2
x SATA:3Gb/s with 5V SATA power connector(no RAID) 1 x SD/MicroSD card |
| 擴展 | 1
x PCIe mini Card Slot:Full-size PCIe Mini card slot (support mSATA co-lay
SATA port 2) 1 x PC/104:PCI signal |
| 電源供電 | 12V
only DC input 1 x Internal power connector (2x2 pin) Support AT/ATX mode |
| 電源功耗 | 12V@1.52A (Intel® Atom™ processor J1900 with one 8 GB 1333 MHz DDR3 memory) |
| 操作溫度 | -40°C ~ 85°C |
| 存儲溫度 | -40°C ~ 85°C |
| Humidity | 5% ~ 95%, non-condensing |
| 尺寸 (LxWxH) (mm) | 115 X 165 |
| 凈重 | 350g |
| Safety & EMC | CE/FCC compliant |
| iRIS | 1 X iRIS-1010 slot |
| NANO-BT-J19001-ECO-R11 | Intel 22nm Quad-Core Celeron J1900 2.0GHz (10W) on-board SoC with VGA/HDMI™/LVDS, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA, mSATA , COM, Audio, ECO packing and RoHS |
| NANO-BT-E38451W2-R11 | EPIC SBC supports Intel 22nm Quad-Core Atom E3845 1.91GHz (10W) on-board SoC with VGA/HDMI™/LVDS, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 3Gb/s, mSATA , COM, audio and RoHS, Extend operating temperature: -40°C ~ +85°C |
