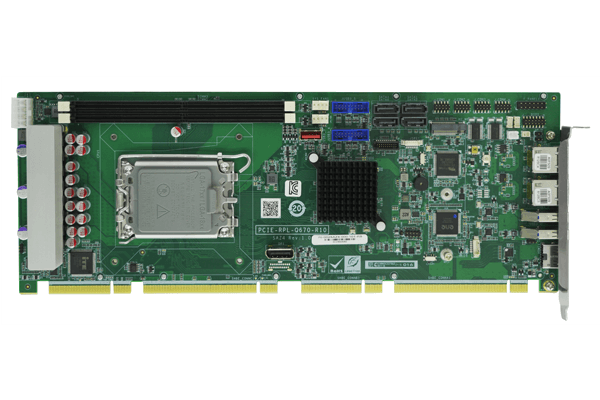

> 產品 > PICMG全長卡 > PCIE-RPL-Q670| 1.支持 LGA1700 Intel® 12/13/14 代 Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU |
|
2. 支持 two 5200 MHz Dual-Channel DDR5
SDRAM Unbuffered DIMMs
|
|
3. 獨立三顯：支持兩個 DP and HDMI™
|
|
4. 支持Intel® I226-LM and Intel® I226V
2.5GbE controller
|
|
5. 支持 M.2 M key 擴展
|
產品規格
| CPU | LGA1700 socket 支持 12th/13th/14th generation Alder Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (高達65W) |
| 芯片組 | Intel® Q670E/Q670 |
| 內存 | 兩個 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs |
| 內存上限 | 高達 96G |
| 網絡 | 2 x LAN - LAN1: Intel® I226-LM 2.5GbE controller LAN2: Intel® I226-V 2.5GbE controller |
| 顯示輸出 | 1
x HDMI™: HDMI1.4 4K@30Hz 2 x Display Port - 1 x DP1.4 4K@60Hz, 180° 1 x DP1.4 4K@60Hz, 180°(Option) (The DP interface is not plugged in. If needed, MOQ is 100.) |
| 音頻 | HD Audio: 1 x iAUDIO, 支持 IEI AC-KIT-888S Audio Module (2 x 5 pin) |
| I/O接口 | 2
x 內部RS-232: 2x5 pin, P=2.54 2 x 內部RS-232/422/485: 2x5 pin, P=2.54 (RS485 支持 AFC) 4 x 內部 USB 2.0: to backplane 1 x DIO12-bit digital I/O (2x7 pin) 2 x 外部 USB 3.2 Gen2x1: 10Gb/s 1 x Internal USB 3.2 Gen2x1: Type A 180° 4 x Internal USB 3.2 Gen1x2: 2 X 10 pin P=2.00 (5Gb/s) 1 x I²C: 1x4 pin |
| 存儲 | 4 x SATA: 6Gb/s (RAID 0/1/5/10 supported) |
| 擴展 | 描述:1 x PCIe Gen3 x16 & 4 x PCIe Gen3 x1 信號通過金手指 4 x PCI 信號通過金手指 |
| 電源供電 | ATX/AT
power supply Support AT/ATX mode ErP/EuP Compliant |
| 電源功耗 | 3.3V@2.39A,
5V@9.68A, 12V@6.56A, 5VSB@0.35A (Intel® Core™ i9-12900 CPU with 16 GB 5600 MHz DDR5 memory, EuP mode disabled) |
| 操作溫度 | -10°C ~ 60°C |
| 存儲溫度 | -30°C ~ 70°C |
| Humidity | 5% ~95%, 無冷凝 |
| 尺寸 (LxWxH) (mm) | 338 mm x 126 mm |
| 凈重 | GW:1000g / NW:500g |
| M.2 | 1 x M.2 M Key (2242/2280, PCIe Gen3 x4 ) 支持NVMe |
| 散熱方案/系統風扇 | 1
x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| TPM | 支持 TPM 2.0 (TPM-IN03 module) & Intel PTT |
| 尺寸類型 | Full Size Single Board Computer |
訂購信息
| PCIE-RPL-Q670-R10 | Full-size PICMG 1.3 CPU Card supports LGA1700 Intel® 12th/13th Gen. Core™ i9/i7/i5/i3/Pentium®/Celeron® CPU with Q670E, DDR5, HDMI,iDPM display module,Dual Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, M.2, HD Audio and RoHS |
