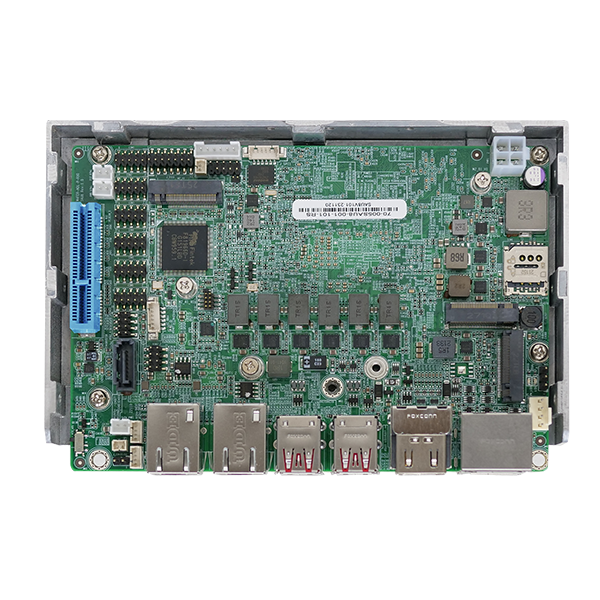

> 產品 > 3.5" WAFER系列主板 > WAFER-ADL-P
| » 支持 12/13代 Intel® mobile Alder Lake-P/Raptor Lake-P 板載 SoC |
|
» 板載 LPDDR4x
3200 MHz 8GB內存，內存上限為 32GB
|
|
» 支持兩路
HDMI™、兩路 DP，四路獨立顯示
|
|
» 支持 PCIe
X4、M.2 M key、M.2 B key和M.2 A key擴展
|
|
» 支持兩個 2.5GbE
網口，使用 Intel® I225V/I226V 網絡芯片
|
| CPU | 12th/13th Gen. Intel® mobile Alder Lake-P/Raptor Lake-P on board SoC |
| 內存 | 板載LPDDR4x-3200 MHz 8GB，內存上限為 32GB |
| 內存上限 | 32GB |
| 網絡 | 2 x LAN - LAN1: Intel® I225V/I226V 2.5GbE controller LAN2: Intel® I225V/I226V 2.5GbE controller |
| 顯示輸出 | 2
x HDMI™: 高達 4096x2160 @ 30Hz 2 x Display Port: 高達 4096 x 2160 @60Hz |
| 音頻 | 1 x HD Audio: 1 x iAUDIO, 支持 IEI AC-KIT-888S 音頻模塊 (2x5 pin) |
| I/O接口 | 4
x 內部RS-232: 2x5 pin, P=2.0 2 x 內部RS-232/422/485: 2x5 pin, P=2.0 4 x 內部 USB 2.0: 2x4 pin, P=2.0 4 x 外部 USB 3.2 Gen2x1: 10Gb/s(Type A) |
| 存儲 | 1
x SATA: 6Gb/s 1 x M.2(NGFF): M.2 M Key 2242/2280 (PCIe Gen3 x4) |
| 擴展 | 1
x PCIe x4: PCIe Gen3 x4 (x4 & x2+x2) 3 x M.2(NGFF) - 1 x M.2 A Key 2230 for WIFI & BT (PCIe Gen3 x 1 & USB 2.0) 1 x M.2 M Key 2242/2280 (PCIe Gen3 x4) 1 x M.2 B Key 3042 (PCIe x2 & USB 2.0) 1 x On-board SIM card socket (hinge type) for M.2 B key |
| 電源供電 | ATX/AT電源 支持AT/ATX模式 符合 ErP/EuP |
| 電源功耗 | 12V@2.83A (第 12 代 Intel® Core™ i7-1265UE CPU，8 GB 3200 MHz LPDDR4x 內存，****值加載，啟用 EuP 模式) |
| 操作溫度 | -10°C ~ 60°C |
| 存儲溫度 | -30°C ~ 70°C |
| Humidity | 5% ~95%, 無冷凝 |
| 尺寸 (LxWxH) (mm) | 146mm x 102mm |
| 凈重 | 350g |
| 尺寸類型 | 3.5〞 SBC |
| WAFER-ADL-P-i7C-R10 | 3.5 SBC supports Intel® Alder Lake-P Core™ i7-1255U Proccessor，with 8GB LPDDR4x memory on board default, with DP ,HDMI™ ,dual 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM,PCIe x4 for riser card and RoHS |
| WAFER-ADL-P-i5C-R10 | 3.5 SBC supports Intel® Alder Lake-P Core™ i5-1235U Proccessor，with 8GB LPDDR4x memory on board default, with DP ,HDMI™ ,dual 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM,PCIe x4 for riser card and RoHS |
| WAFER-ADL-P-i3C-R10 | 3.5 SBC supports Intel® Alder Lake-P Core™ i3-1215U Proccessor，with 8GB LPDDR4x memory on board default, with DP ,HDMI™ ,dual 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM,PCIe x4 for riser card and RoHS |
| WAFER-ADL-P-CC-R10 | 3.5 SBC supports Intel® Alder Lake-P Celeron® 7305 SoC Processor，with 8GB LPDDR4x memory on board default, with DP ,HDMI™ ,dual 2.5 GbE , USB 3.2 gen 2 , M.2, SATA 6Gb/s, COM,PCIe x4 for riser card and RoHS |
