 特征 | | |
|  | Intel® Ivy Bridge 移動芯片組 (QM77/ NM70)
| | 預留空間給 3.75G / HSUPA USB 電子狗 | | 15’’ 400 nits 1024 x 768 LCD 帶 LED 背光燈 | | 可選 GPS 接收器 | | 全 IP 65 鋁制壓鑄機身 | | 可選 EM 或 Mifare RFID 讀取器 | | PCIe Mini 卡擴展 | | 可選藍牙模塊 | | Dual-DC 輸入, 9V ~ 36V 和 10.5V ~ 36V, 自動開關
| | 內置 2百萬像素?cái)z像頭, 具備 AF, AE 和 AWB 性能 | | 支持 ACC 電源 | | CAN-bus 接口帶隔離保護 | | Dual-band 2.4/5GHz Wi-Fi 802.11a/b/g/n 3T3R MIMO 設計 | | F1 ~ F10 功能鍵支持客制選項 |
|
| 堅固的機械設計 | | |
|

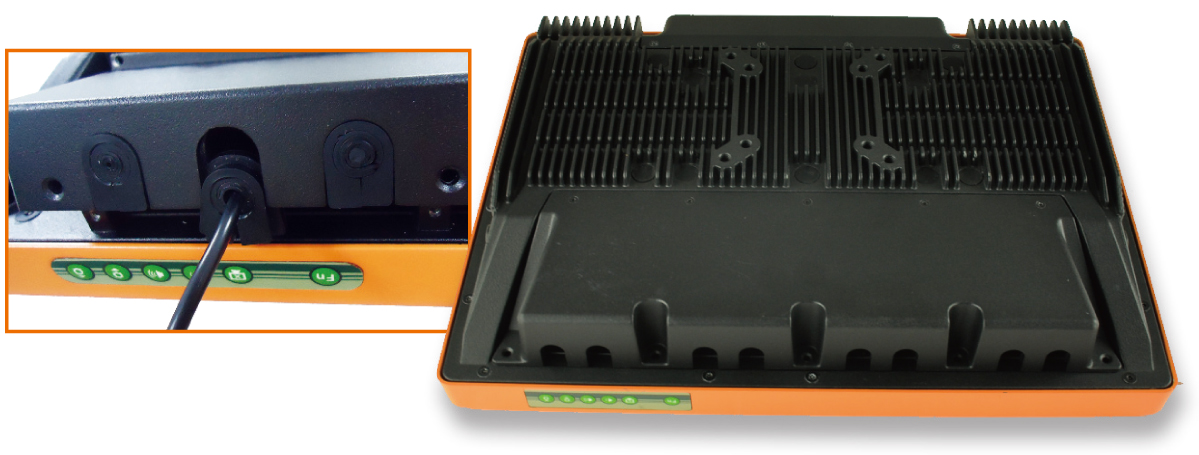

UPC-V315 的鋁制機身和防水橡膠外殼完全符合 IP65 防護等級. 它支持寬溫操作 -20°C ~ 60°C. |  |  |
| |
| PCIe Mini 卡擴展 | | |
|
A. 3T3R Wi-Fi 模塊
UPC-V315 支持 IEEE 802.11a/b/g/n 3T3R WiFi 模塊, 提高傳輸速度和覆蓋范圍.
T: 發射器
T 前的數字與速度有關, 1T 可達 150Mbps, 2T
可達 300Mbps, 3T 可達 450Mbps.
R: 接收器
R 前的數字與接收死角和距離有關.
R 前的數字越大, 接受范圍更大. |
| B. 固態硬盤

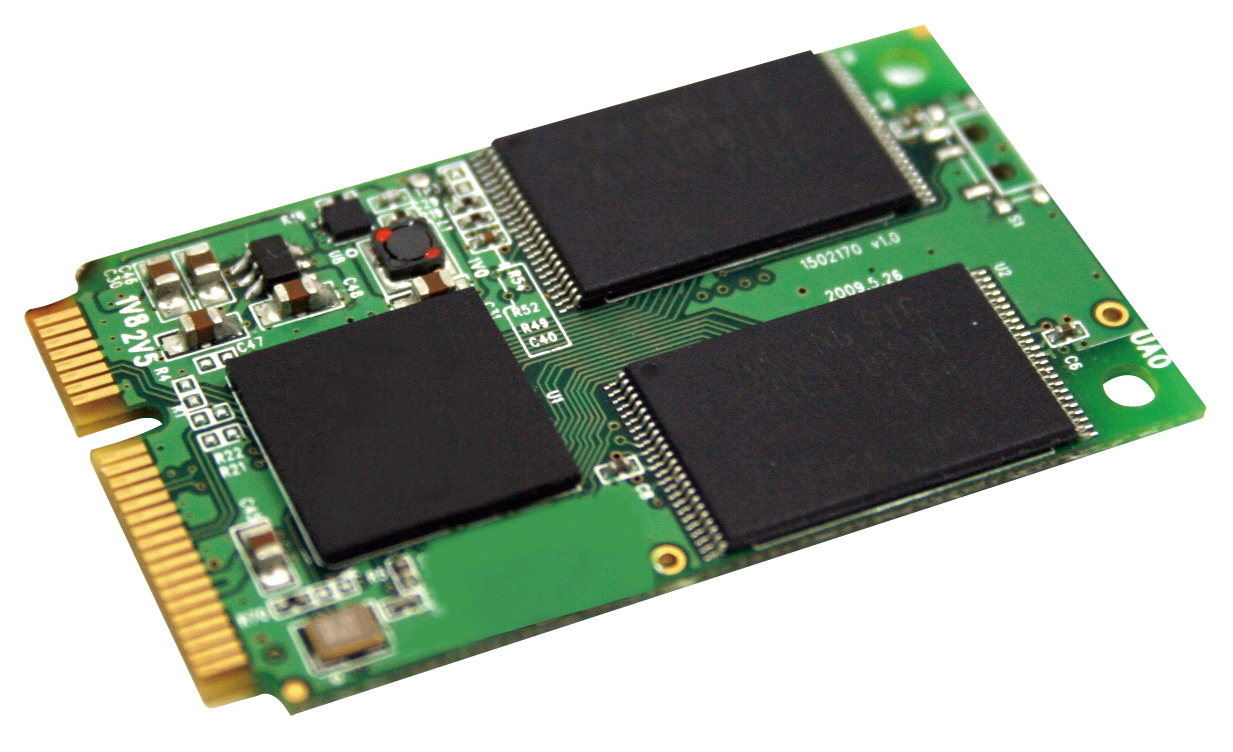

mSATA mSATA 是緊湊型堅固耐用 HDD,比傳統的速度更快, 適用于惡劣的環境.
| | C. 4 通道采集卡 UPC-V315-QM77 支持 4 通道采集卡解決方案通過 PCIe Mini 卡, 輕松集成 IP 攝像頭支持監控和視頻流. | | | 僅支持 QM77 | | | IVCME-C604 | | | 叉車管理 | 屠宰場 | 花卉市場管理 |
|
| |
| CAN-bus 接口帶隔離保護 | | |
|
控制局域網 (CAN) 是一個串行總線系統. UPC-V312 板載 CAN 控制器 提供總線仲裁和錯誤檢測記憶自動傳輸重復功能. 這大大減少數據丟失的可能性, 確保系統的可靠性,適用于網絡智能 I/O 設備如傳感器, 機器或工廠的制動器
1. 隔離保護電壓 2500V/min DC 保護
2. 典型瞬態免疫 50 kV/ms ESD 保護 | |
| |
| IO 接口和人機界面 | | |
|  |
 | Fn |  | 背光燈開/關 |  | RFID 啟用 / 禁用 |  | 音頻 - | | 靜音 |  | 音頻 + | | 攝像頭啟用 / 禁用 |  | 亮度 - | | 右側 USB 啟用 / 禁用 |  | 亮度 + | | 電源開 / 關 |
|
| |
| 規格 | | |
| | 型號 | UPC-V315-NM70 | UPC-V315-QM77 | | 顯示 | LCD 尺寸 | 15 “ | 15 “ | | ****分辨率 | 1024(W) x 768(H) | 1024(W) x 768(H) | | 亮度 (cd/m²) | 400 | 400 | | 對比率 | 700:1 | 700:1 | | LCD 顏色 | 16.2M | 16.2M | | 像素間距 (mm) (HxV) | 0.297(H) x 0.297(V) | 0.297(H) x 0.297(V) | | 可視角度 (H-V) | 125°/ 140° | 125°/ 140° | | 背光燈 MTBF (hrs) | 50000 | 50000 | | 觸摸 | 觸摸屏 | Resistive Type 5-Wire with RS-232 interface | | 觸摸控制器 | DMC 9000 | DMC 9000 | | 主板 | CPU | Intel® Celeron® Processor 847 | Intel® Core™ i7-3517UE Processor
Intel® Core™ i3-3217UE Processor | | 芯片組 | Mobile Intel® NM70 Express Chipset | Mobile Intel® QM77 Express Chipset | | RAM | Buitl-in one 2 GB DDR3 memory
(System max. 8GB, on board max. 4GB, socket max. 4GB) | | Ethernet | Intel® WG82579LM GbE PHY | Intel® WG82579LM GbE PHY | | 音頻編解碼器 | Realtek ALC892 HD audio codec | Realtek ALC892 HD audio codec | | I/O 接口和開關 | 3 x RS-232 (RJ-45)
1 x RS-422/485 (RJ-45)
1 x CAN-bus
1 x VGA
1 x HDMI port
2 x GbE LAN
2 x USB 2.0
1 x Reset button
1 x Audio jack (Line out,MIC)
1 x DC Jack (9~36V DC)
1 x Terminal block (9~36V DC)
1 x AT / ATX mode switch | 3 x RS-232 (RJ-45)
1 x RS-422/485 (RJ-45)
1 x CAN-bus
1 x VGA
1 x HDMI port
2 x GbE LAN
2 x USB 2.0
2 x USB 3.0
1 x Reset button
1 x Audio jack (Line out, MIC)
1 x DC Jack (9~36V DC)
1 x Terminal block (9~36V DC)
1 x AT / ATX mode switch | | 系統 | 音頻 | AMP 3W + 3W (Internal Speaker) | AMP 3W + 3W (Internal Speaker) | | 攝像頭 | 2-megapixel | 2-megapixel | | 其他特征 | 無線 | IEEE 802.11a/b/g/n 3T3R module (WIFI-RT5393-DB-R10) | | 藍牙 | Bluetooth V2.0+EDR with USB interface (optional) | | 3G | Reserved USB connector (Optional) | Reserved USB connector (Optional) | | GPS | N/A | FV-W9U (Optional, internal USB header) | | Drive Bay | HDD Driver Bay | 1 x 2.5” SATA SSD bay | 1 x 2.5” SATA SSD bay | | SSD | mSATA | mSATA | | CD-ROM Driver Bay | N/A | N/A | | 擴展槽 | N/A | 1 x PCIe Mini Card | | Drive Bay | Fanless | Fanless | | 物理屬性 | 機構材質 | Aluminium alloy | Aluminium alloy | | 安裝 | VESA 100mm x100mm or 75mm x 75mm with M8 screws | | 前面板顏色 | Orange (Pantone 15C) | Orange (Pantone 15C) | | 尺寸 (WxHxD) (mm) | 427.19 x 330.63 x 77.06 | 427.19 x 330.63 x 77.06 | | 凈重 | 7.97 kg | 7.97 kg | | 環境 | 操作溫度 | -20°C ~60°C | -20°C ~60°C | | 存儲溫度 | -30°C ~70°C | -30°C ~70°C | | 操作濕度 | 5% ~90%, 無冷凝 | 5% ~90%, 無冷凝 | | 沖擊 | Half-sine wave shock 3G, 11ms, 3 shocks per axis | | 振動 | MIL-STD-810F 514.5C-1 (with SSD) | | IP 等級 | Full IP 65 | Full IP 65 | | 電源 | 適配器 | 90 W, 63040-010090-020-RS | 90 W, 63040-010090-020-RS | | 要求 | Power1: 9V~36V(+/-0.3V)
Power2: 10.5V~36V(+/-0.3V) | Power1: 9V~36V(+/-0.3V)
Power2: 10.5V~36V(+/-0.3V) |
| |

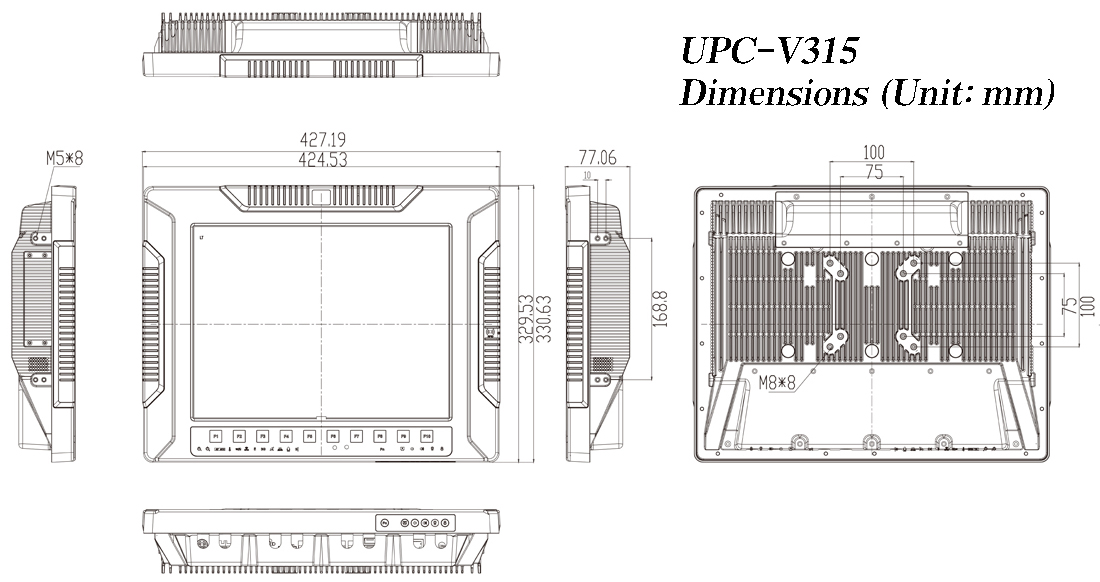

| 尺寸 | | |
|  | |
| 訂購信息 | | |
| | 料號 | 描述 | | UPC-V315-QM77-i7/R/2G-R10 | 15” 400cd/m² XGA fanless full IP65 panel PC with Mobile Intel® QM77 Express Chipset and Intel® Core™ i7-3517UE Processor, 802.11a/b/g/n wireless module, resistive touch screen, 2-mgeapixel camera, microphone, 2GB DDR3 RAM, R10 | | UPC-V315-QM77-i3/R/2G-R10 | 15” 400cd/m² XGA fanless full IP65 panel PC with Mobile Intel® QM77 Express Chipset and Intel® Core™ i3-3217UE Processor, 802.11a/b/g/n wireless module, resistive touch screen, 2-mgeapixel camera, microphone, 2GB DDR3 RAM, R10 | | UPC-V315-NM70-C/R/2G-R10 | 15” 400cd/m² XGA fanless full IP65 panel PC with Mobile Intel® NM70 Express Chipset and Intel® Celeron® Processor 847, 802.11a/b/g/n wireless module, resistive touch screen, 2-mgeapixel camera, microphone, 2GB DDR3 RAM, R10 |
| |
| 可選配件 | | |
| | 名稱 | 料號 | | ARM | ARM-31-RS | | Wall Mounting Kit | AFLWK-19B | | Stand | STAND-C19-R10/STAND-100/STAND-210 | | GPS Module Kit | UPC-GPS-KIT01-R10 | | Bluetooth Module Kit | UPC-BT-KIT01-R10 | | EM RFID Kit | UPC-EM-RFID-KIT01-R10 | | Mifare RFID Kit | UPC-MF-RFID-KIT01-R10 | | OS: Win XPE (CD-ROM) | UPC-V315-XPE-R10 | | OS: Linux (CD-ROM) | UPC-V315-LNX-R10 | | OS: Win 7 Embedded (CD-ROM) | UPC-V315-W7E-R10
|
| |
| 包裝清單 | | |
| | 名稱 | 料號 | 數量 | | Utility CD | | 1 | | One Key Recovery CD | | 1 | | IR Remote Controller | 7Z000-SLPCB005-RS | 1 | | RJ-45 to DB-9 COM Port Cable | 32005-000200-200-RS | 4 | | M8 Screw | 44325-080081-RS | 8 | | M4 Screw | 44005-040082-RS | 8 | | Mounting Bracket | 41003-0433C2-00-RS | 2 | | Screw Driver | 45019-001004-00 | 1 | | Power Adapter | 63040-010065-010-RS | 1 | | Power Cord (European Standard) | 32702-000401-100-RS | 1 | | Power Transfer Cord | 32702-000300-100-RS | 1 | | M8 to M4 Screw | 44300-040061-RS | 8 |
| |
|
|
