威強推出 PPC-F10B-BT 重工業平板電腦
[ Date: 2015/10/20 17:17:19]
 特征 | | |
|
 | 10.4” 無風扇工業平板電腦 | | 支持低功耗 DDR3L 內存 | | Quad-core Intel® Celeron® processor J1900 2.0GHz | | 前面板符合 IP 65 | | 支持 SSD mSATA | | Dual GbE 支持備份 | | 9 V~30 V wide DC input | | -10°C~50°C 寬溫 |  |
|
|
| 規格 | | |
|
| 型號 | PPC-F10B-BT | | LCD | LCD 顯示 | 10.4” | | ****分辨率 | 800 (W) x 600 (H) | | 亮度 (cd/m²) | 400 | | 對比率 | 700:1 | | LCD 顏色 | 16.2M | | Pixel Pitch (mm) | 0.264(H) x 0.264(V) | | Viewing Angle (H-V) | 160° / 140° | | Backlight MTBF (Hrs) | 30000 | | 主板 | CPU | Intel® Celeron® J1900 on-board SoC quad-core, 2GHz | | RAM | 2 x 204-pin DDR3L SO-DIMM slot (max. 8GB) | | 觸摸 | 觸摸屏 & 控制器 | 5-wire resistive type flat touchscreen | | 面板硬度 | 3H | | 輸入接口 | I/O 接口 & 開關 | 1 x RS-232 COM port (RJ-45 connector)
1 x RS-232/422/485 COM port (DB9 connector) (RI/5V/12V)
2 x USB 2.0
2 x USB 3.0
2 x GbE LAN
1 x Power switch
1 x Reset button
1 x AT/ATX switch
1 x Audio port (line-out)
1 x 9 V~30 V lockable power jack | | 擴展 | 1 x Full-size PCIe Mini slot (with mSATA/PCIe/USB signal)
1 x Half-size PCIe Mini slot for Wi-Fi modules | | Wireless LAN | SMA antenna (optional) | | 存儲 | SSD | mSATA | | HDD | 1 x 2.5” HDD bay | | 物理屬性 | 材質 | Aluminum front bezel | | 安裝 | Stand/ Panel Mount/Rack Mount/ VESA 75*75/100*100 Mount | | 外殼顏色 | Black C | | 尺寸 (mm) | 232.4 x 285.2 x 44 | | 重量 (Net) | 1.77kg | | 開孔尺寸 (mm) | 267.2 x 214.4 | | 環境 | 操作溫度
(with air flow) | -10°C~50°C (14°F~122°F) | | 存儲溫度 | -20°C~60°C (-4°F~140°F) | | 濕度 | 10% to 95% (non-condensing) | | IP 等級 | IP 65 compliant front panel | | 安規和 EMC | CE & FCC Class A certified | | 電源輸入 | Power Supply | 9 V~30 V DC | | 功耗 | 40W |
|
|

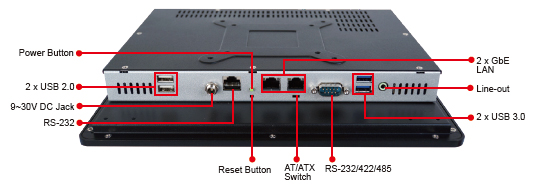

| 完整的 I/O 接口 | | |
|
|
|

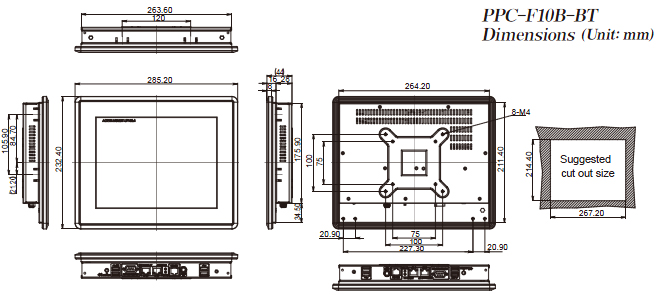

| 尺寸 | | |
|
|
|
| 訂購信息 | | |
|
| 料號 | 描述 | | PPC-F10B-BT-J1/2G/R-R10 | 10.4” 400 cd/m² SVGA panel PC with Intel® Celeron® processor J1900, TDP 10W, 2GB DDR3L RAM, black color, 9-30V DC input, resistive touch window, R10 |
|
|
| 可選配件 | | |
|
| 名稱 | PPC-F10B | | ARM | ARM-11-RS | | Stand | STAND-100-RS
STAND-B08
STAND-C12-R10 | | Wall Mount Kit | AFLWK-12 | | Panel Mount Kit | FPK-07-R10 | | WiFi Kit | PPC-WL-KIT02-R11 |
|
|
| 包裝清單 | | |
|
| 名稱 | 數量 | 備注 | | PPC-FxxB-BTi Panel PC | 1 |
| | User Manual & Driver CD | 1 | | | One Key Recovery CD | 1 | | | Touch Pen | 1 | Resistive type models only
P/N: 43125-0002C0-00-RS | | Power Cord | 1 | Part numbers varies by regions | | Screw Pack | 1 | Including necessary screws | | Power Adapter | 1 | 9V~36V DC |
|
