隨著人口老齡化程度日益加深，醫療行業也進入了信息化運營時代。使用電子設備交付、存儲和采集臨床數據已成為一種趨勢。為此，IEI開發出品質優異、性能可靠的醫療通信系統—HTB-100-HM170 醫療嵌入式系統。該系統通過了 EMC 測試，并符合 ISO13485、IEC 60601-1（V3.1）和 IEC 60601-1-2（V4.0）標準，性能卓越，具有多個擴展選項，可實現功能多樣化，還可降低成本，消除人為錯誤，提高工作人員的效率，是智慧醫療的****選擇。
HTB-100-HM170 配有防水頂蓋，以防液體和清洗對設備造成損害，從而間接對患者產生不好的影響。該系統采用無風扇設計，以降低噪音。電纜蓋板不僅能防止灰塵和液體進入 HTB-100-HM170，還有助于醫務人員輕松地從 I/O 端口管理所有的電纜，更加方便地清潔設備。此外，HTB-100-HM170 具有靈活的擴展選項，可附加視頻采集卡以進行醫學影像檢查；支持隔離 COM 端口，為患者和醫務人員提供全面的防電涌保護，從而提高醫療環境中設備的安全性。
HTB-100-HM170 支持各種安裝方法，如臺式安裝和壁掛式安裝，所提供的柔性安裝支架可以 180 度轉換角度，方便在醫療環境中使用。 完美的接地引腳設計可防止與患者相連的重要設備產生靜電，還可避免來自其他設備的電流損傷。
智能 HTB-100-HM170 醫療計算系統可用于諸如 ICU、手術室或急救室等醫療環境，能滿足醫療應用的各種需求。
 產品特征 | | |
|  | Medical grade with high performance fanless embedded computing | | 6th Gen Intel® Core™ processor platform with Intel® HM170 chipset and DDR4 memory | | Triple independent display with high resolution support | | Isolated COM ports for enhancing safety among devices | | Optional PCIe x16 expansion slot supports more flexible functions |
|
|
| Smart & Friendly Design! HTB-100 brings you more satisfaction | | |

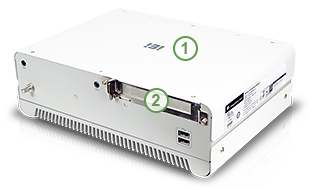

| | Isolated COM ports, rich I/O interface, and multiple expansions are built in to the HTB-100. The intelligent HTB-100 medical computing system will meet all demands from the medical applications. | | 1. Compliant with medical standards | | The HTB-100 is compliant with medical standards, including IEC 60601-1 V3.1, IEC 60601-1-2 V4.0, IEC 62304, IEC 62366, ISO 14971 and FCC part 18 class B, making the medical environment more reliable. |
| 2. Flexible expansion | | The flexible expansion is one of the advantages of the HTB-100 for medical applications. The HTB-100 reserves a PCIe x16 slot for add-on card expansions, such as capture card for medical imaging inspection during surgery. |

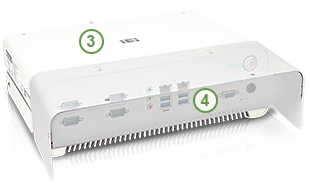

|  |  | | 3. Waterproof top cover | | The HTB-100 is equipped with a waterproof top cover in order to prevent any damage from cleaning or liquid which may indirectly affect patients. The HTB-100 can meet flat design and reduce maintenance effort. |
| 4. Cable cover for easy cabling | | The cable cover protects the HTB-100 from dust and liquid ingress, and allows the medical staff to easily manage all the cables from the I/O ports, making the cleaning process more convenient in medical environment. |
|
|
|
| Powerful system design capability with innovative technology | | |

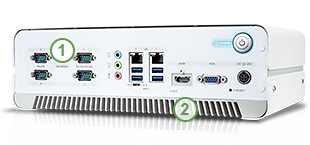

|  | "images/ | 2. Fanless and easy maintenance | | The HTB-100 is a fanless embedded system, and the heatsink is situated on the bottom side. The design makes the HTB-100 an easyto-clean and reliable system for the medical environment. |

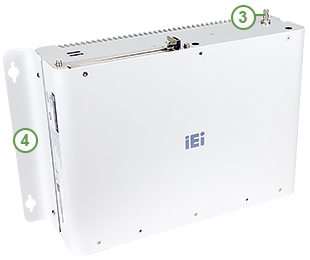

| | 3. | Ground pin to prevent harm to patients and medical staffs | | The perfect grounding pin design can avoid current from the HTB-100 to vital devices which connect to patients, and to avoid the current damage from other devices. |
| 4. | Easy mounting design | | Various mounting methods such as desktop and wall mount are supported for easy use in medical environment. The provided flexible mounting bracket can be oriented 180 degrees to change from desktop to wall mount. |
|  |
|
|
| 產品規格 | | |
| | Model Name | HTB-100-HM170 | | Chassis | Color | Silver+Greyish blue | | Dimensions (WxDxH) | 294 x 209 x 90.2 | | System Fan | Fanless | | Chassis Construction | Extruded aluminum alloy | | Motherboard | CPU | Intel® Core™ i7-6822EQ (2 GHz, quad-core, TDP=25)
Intel® Core™ i5-6442EQ (1.9 GHz, quad-core, TDP=25) | | Chipset | Intel® HM170 | | System Memory | 2 x 260-pin DDR4 SO-DIMM, one 4 GB pre-installed (system max: 32GB) | | Storage | Hard Drive | 1 x 2.5" SATA 6Gb/s HDD/SSD bay | | I/O Interfaces | USB 3.0 | 4 | | USB 2.0 | 2 | | Ethernet | 2 x RJ-45 PCIe GbE by Intel® I211 controller | | COM Port | 2 x RS-232 (DB-9, with 4 kV isolation)
2 x RS-232/422/485 (DB-9, with 4 kV isolation) | | Display | 1 x VGA, 1 x HDMI 2.0, 1 x iDP (optional) | | Resolution | VGA: Up to 1920 x 1200@60HZ
HDMI 2.0: Up to 4096 x 2160@60Hz | | Audio | Realtek ALC662, 5.1-channel High Definition Audio (HDA), Line-in, Line-out, Mic-in | | Wireless | 1 x 802.11a/b/g/n/c 2T2R (optional) | | Expansions | PCIe | 1 x PCIe x16 | | PCIe Mini | 1 x Half-size PCIe Mini
1 x Full-size PCIe Mini (supports mSATA, colay with SATA) | | M.2 | 1 x M.2 (A & E key) | | Power | Power Input | DC Jack: 12~28V DC | | Power Consumption | 19V@4.4A (Intel® Core™ i7-6822EQ with 4 GB memory) | | Reliability | Mounting | Wall mounting | | Operating Temperature | 0°C ~ 40°C with air flow (SSD), 10% ~ 95%, non-condensing | | Storage Temperature | -40°C ~70°C with air flow (SSD), 10% ~ 90%, non-condensing | | Operating Shock | Half-sine wave shock 5G; 11ms; 100 shocks per axis | | Operating Vibration | MIL-STD-810G 514.6 C-1 (with SSD) | | Safety / EMC | CE, FCC class B part 18, IEC 60601-1 V3.1, IEC 60601-1-2 V4.0, IEC 62304, IEC 62366, ISO 14971 | | OS | Supported OS | Microsoft® Windows 8, Microsoft® Embedded Standard 7 |
|
|

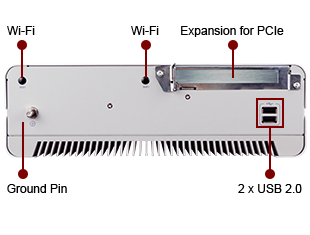

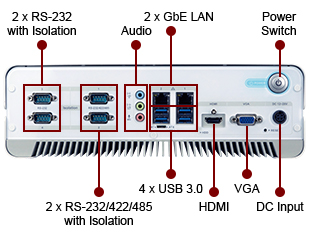

| I/O Interface | | |
| |
|
| Dimensions | | |
|  |
|
| 訂購信息 | | |
| | 產品名稱 | 描述 | | HTB-100-HM170-i5/4G-R10 | Ruggedized fanless embedded system with Intel® Core™ i5-6442EQ 1.9 GHz (up to 2.7 GHz, quad core, TDP 25W), 4GB DDR4 pre-installed memory, one PCIe x16 expansion, VGA/HDMI/iDP, COM port, 12~28V DC, RoHS | | HTB-100-HM170-i7/4G-R10 | Ruggedized fanless embedded system with Intel® Core™ i7-6822EQ 2.0 GHz (up to 2.8 GHz, quad core, TDP 25W), 4GB DDR4 pre-installed memory, one PCIe x16 expansion, VGA/HDMI/iDP, COM port, 12~28V DC, RoHS |
|
|
 Options | | |
| | 產品名稱 | 描述 | | 63040-580120-000-RS | Adapter Power, Darfon, H1120-B0, BK.1HB2J3001, Active PFC, Vin:90~264VAC, 120W, 1200mm, MEDICAL, Vout:19VDC, Din 4Pin/lock, CCL, RoHS | | 32702-000200-100-RS | POWER CORD; EUROPEAN CODE (VDE) |
|
|
| 包裝清單 | | |
| | 1 x Utility CD | 1 x One Key Recovery CD | | 1 x Chassis Screw | 1 x Mounting Bracket |
|
|
