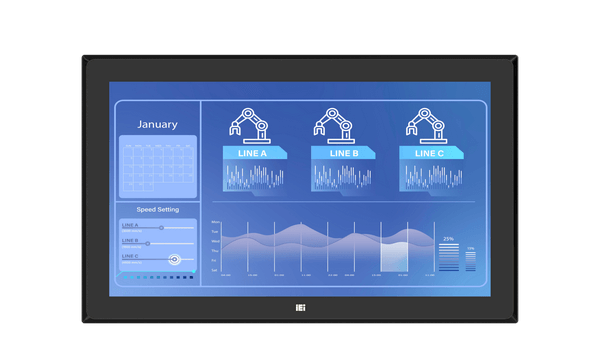

> 產品 > 重工業平板電腦 > PPC2-C19-ADL
| » 第12代英特爾®異構平臺 |
|
» PCIe Gen4
x16 (x16信號) 擴展插槽
|
|
»
防眩光與抗紫外的電容觸控屏
|
|
» 支持手套和濕手下觸摸操作
|
|
» 全新手擰面板安裝套件
|
|
» 全新觸控圖形化 BIOS
|
| CPU | 12th Gen Intel® Core™ i9/i7/i5/i3 and Pentium® Processor (LGA1700) TDP 65W |
| 芯片組 | Intel H610 |
| 存儲 | 1 x 2.5” SATA 硬盤位 (限高 7.5mm) |
| 網絡 | 雙 2.5GbE 網口，通過 Intel® I225V 驅動 |
| 擴展 | 1
x PCIe Gen4 x 16 擴展插槽, x16 信號 1 x M.2 E-Key 2242 (PCIe Gen3 x1 + CNVI) 1 x M.2 M Key 2242/2280 NVMe (PCIe Gen3 x4) |
| 工作溫度 | -10ºC ~ 60ºC |
| 安規&電磁 | CE, FCC Class A, UKCA |
| 相對濕度 | 10% ~ 95%@40ºC, 無冷凝 |
| 存儲溫度 | -20ºC ~ 60ºC |
| 機身顏色 | 黑色 |
| 安裝方式 | VESA 100, Panel, Wall, Rack, Stand and Arm |
| Dimensions (LxWxH) (mm) | 447.4 x 372.4 x 82.2 |
| Net Weight | 7.660kg |
| Construction | 鋁質前面板和金屬后蓋 |
| Power Supply | ●
交流輸出 ATX 電源 ● 250 W 電源 - 輸入: 100V~240V AC, 47Hz-63Hz - 輸出 (max.): 3.3V@6A, 5V@12A, 12V@17A, -12V@0.5A,+5Vsb@2A ● 支持 AT/ATX 模式 ● 符合 ErP/EuP |
| LCD 尺寸 | 19” (5:4) |
| 分辨率 | 1280 (W) x 1024 (H) |
| 亮度 | 450 cd/m² |
| 對比度 | 41.66736111 |
| LCD 色彩 | 16.7M |
| 像素間距 (mm) | 0.294 x 0.294 |
| 可視角度 (H-V) | 170°/160° |
| 背光 MTBF | 50,000 小時 |
| 觸摸屏 | ●
多點電容式觸控屏(抗紫外/防眩光,支持手套) ● 表面硬度：7H |
| 觸控IC | EETI 80 系列 |
| IP Level | 前面板 IP 65 |
| System Cooling | 智能風扇 (2 x CPU FAN, 2 x SYS FAN) |
| TPM | 英特爾® PTT 技術 |
| I/O 接口 | 4
x RS-232 (by DB9) 1 x RS-232/422/485 (by DB9) 2 x USB 2.0 (Type-A) 2 x USB 3.2 Gen1x1 (Type-A, 5Gb/s) 1 x HDMI™ (2.0, up to 3840*2160 @60Hz) 2 x LAN (英特爾® I225V 2.5GbE 控制 IC) 1 x Reset Button 1 x Power Switch 1 x AT/ATX switch 1 x Clear CMOS Button 2 x USB 3.2 Gen2x1 (Type-A, 10Gb/s) |
| Memory Ext. | Two 260-pin 3200 MHz Dual-Channel DDR4 SO-DIMM (MAX:64GB) |
| OS Support | Windows
10 IoT Linux |
| PPC2-C19-ADL-i7/8G-R10 | 19" 350 cd/m² 1280x1024 Panel PC with 12th Intel® Core™ i7-12700 Processor (25M Cache, up to 4.90 GHz),TDP 65W,8GB DDR4,HDMI™ Output,1*PCIe Gen4 x 16 Slot,1*M.2 2280,ATX/AT power supply,projected capacitive touchscreen with AG,R10 |
| PPC2-C19-ADL-i5/8G-R10 | 19" 350 cd/m² 1280x1024 Panel PC with 12th Intel® Core™ i5-12400 Processor (18M Cache, up to 4.40 GHz),TDP 65W,8GB DDR4,HDMI™ Output,1*PCIe Gen4 x 16 Slot,1*M.2 2280,ATX/AT power supply,projected capacitive touchscreen with AG,R10 |
| PPC2-C19-ADL-i3/8G-R10 | 19" 350 cd/m² 1280x1024 Panel PC with 12th Intel® Core™ i3-12100 Processor (12M Cache, up to 4.30 GHz),TDP 60W,8GB DDR4,HDMI™ Output,1*PCIe Gen4 x 16 Slot,1*M.2 2280,ATX/AT power supply,projected capacitive touchscreen with AG,R10 |
| PPC2-C19-ADL-P/8G-R10 | 19" 350 cd/m² 1280x1024 Panel PC with 12th Intel® Pentium® Gold G7400 Processor (6M Cache, 3.70 GHz),TDP 46W,8GB DDR4,HDMI™ Output,1*PCIe Gen4 x 16 Slot,1*M.2 2280,ATX/AT power supply,projected capacitive touchscreen with AG,R10 |
